The MPA series air booster is designed to provide the user with a pressure that is higher downstream from the booster than it is upstream from it: actual pressure increases will depend on compression ratio of the chosen version. AIRON air boosters are available with compression ranges of 2.5:1 and 3,5:1. With the circuit integrated in the system the user can obtain the right pressure simply by adjusting input pressure. Easy to fit, compact and with good delivery flow rates, these boosters are a practical and economic solution for all those applications which require greater pressure than that provided by the compressor alone. Generally used to increase the force of pneumatic cylinders they thus provide, given the same force, more compact, lighter units for high pressure blowing, testing of components, burst tests etc. For different flow rates and ratios please contact our technical service.

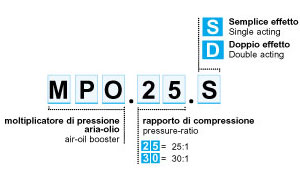

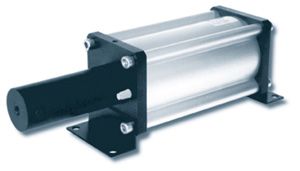

The MPO series air-oil booster is a device made up of a pneumatic cylinder the rod of which acts directly on the oil in the high pressure chamber, raising pressure to a value of over 200 bar. The single-action versions pressurise oil volumes of 25 cc with a compression ratio of 30:1, or 50 cc volumes with a ratio of 25:1. For different volumes or compression ratios please contact our technical service. Boosters are supplied with machine attachment feet as standard; an external oil tank, pressure gauge and pressure switch can be supplied on request.
