Microvalves V

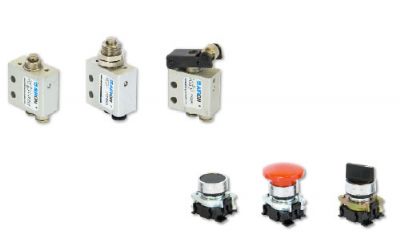

"V" series microvalve are 3/2 mechanical pilot valves available in the normally open an normally closed versions. With specifics brackets and levers or buttons they can be used like 5/2 or 5/3 (closed center or pressurized centers) valves in order to pilot bigger valves or control signals. Standard version is available with 4 mm tube fittings on the bottom of the body. On request (changing the final letter of the order code) they can be supplied with ports M5 and adding L, ports can be supplied on the side of the body.

Valves for Panel Mounting are valves of "V" series with lever or button device in order to be mounted on control panels of the automatic machines. The following table is useful to understand which valve to choose in the catalogue for the specific need.
